Bolt Down Retaining Walls
Our L-shape concrete retaining walls are manufactured to BS EN 13369:2013, and designed to last between 50 and 100 years.
Bolt Down Retaining Walls
Bolt Down L-shape retaining walls are mechanically fixed to a prepared concrete foundation slab using structural anchor bolts. This system provides enhanced resistance to sliding and overturning forces.
Their bolt-down design provides the perfect solution for soil retention in construction or the deployment of robust storage bays.
Our bolt-down walls are designed to withstand surcharge loadings of 10 kN/m² - 25 kN/m² with manufacturing tolerances based on BS EN 13369:2013 and BS EN 13670:2009.
Our Bolt Down Retaining Walls are designed to withstand surcharge loadings of 20/25 kN/m²
Should you require specific surcharge loadings we also offer 20/25 kN/m² walls
Quick Installation
Installation rates of up to 50m per day with a three-person crew
Proven Performance
Engineered for surcharge capacities up to 25 kN/m², delivering strength where it matters
Cost Effective
Compared to in-situ pouring, our retaining walls require less time, labour and material costs

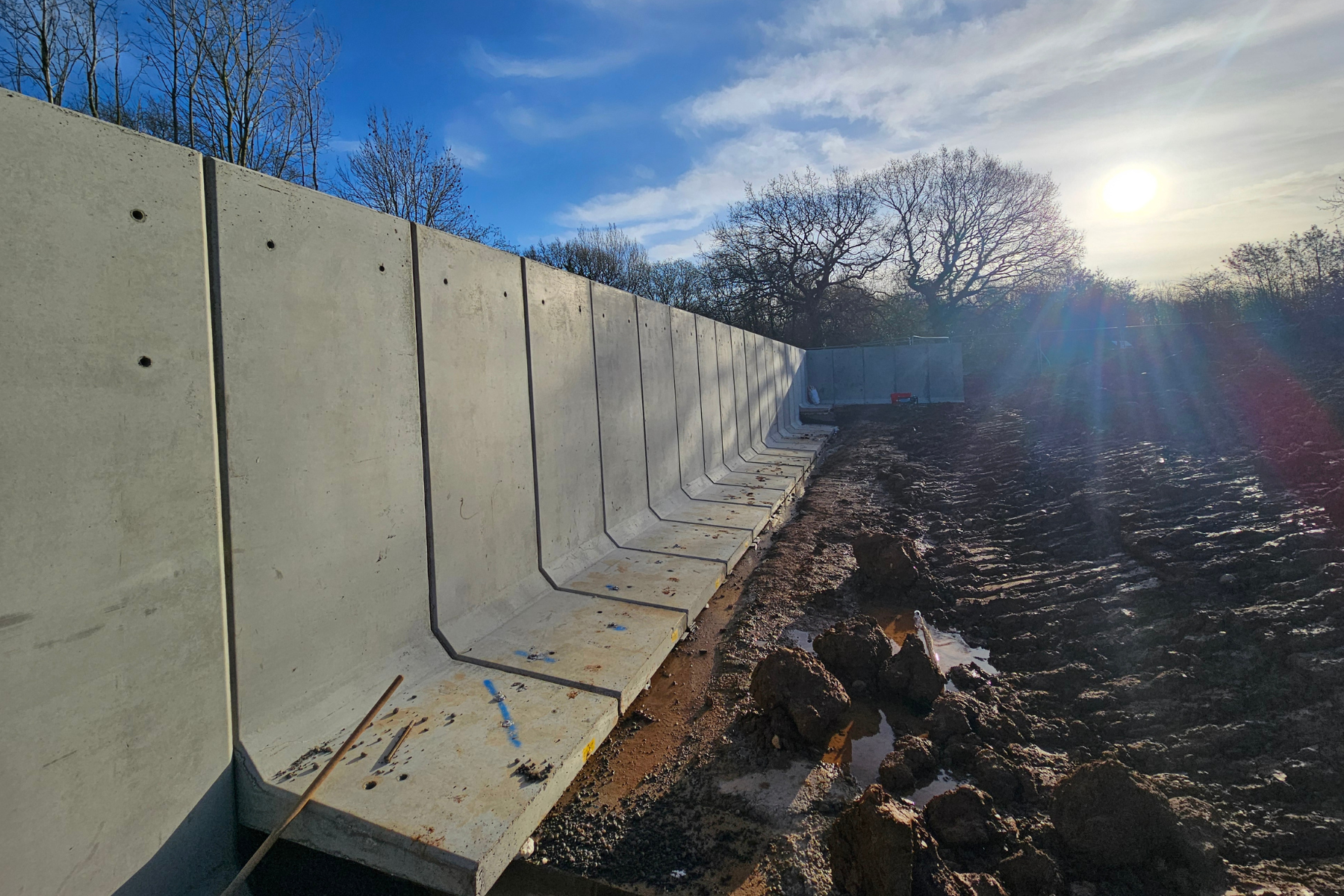

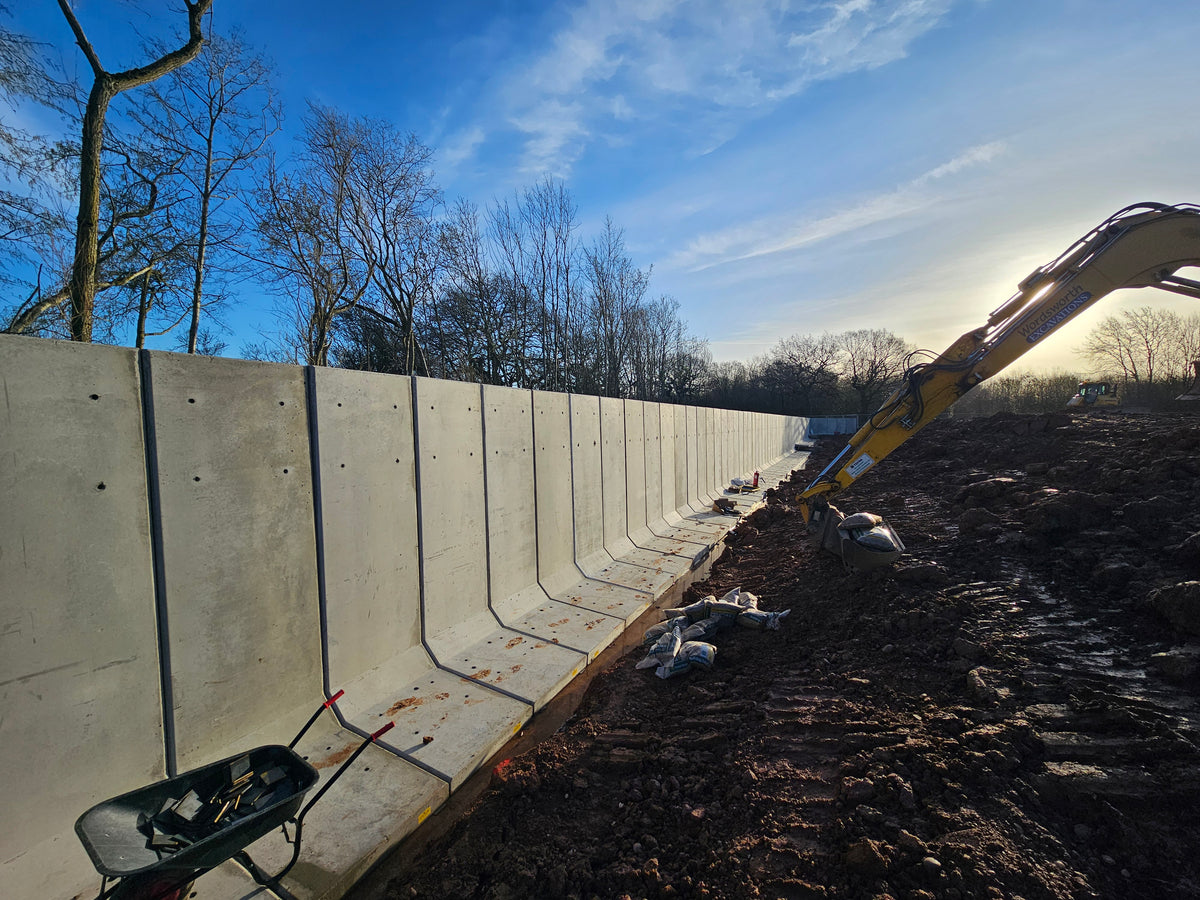

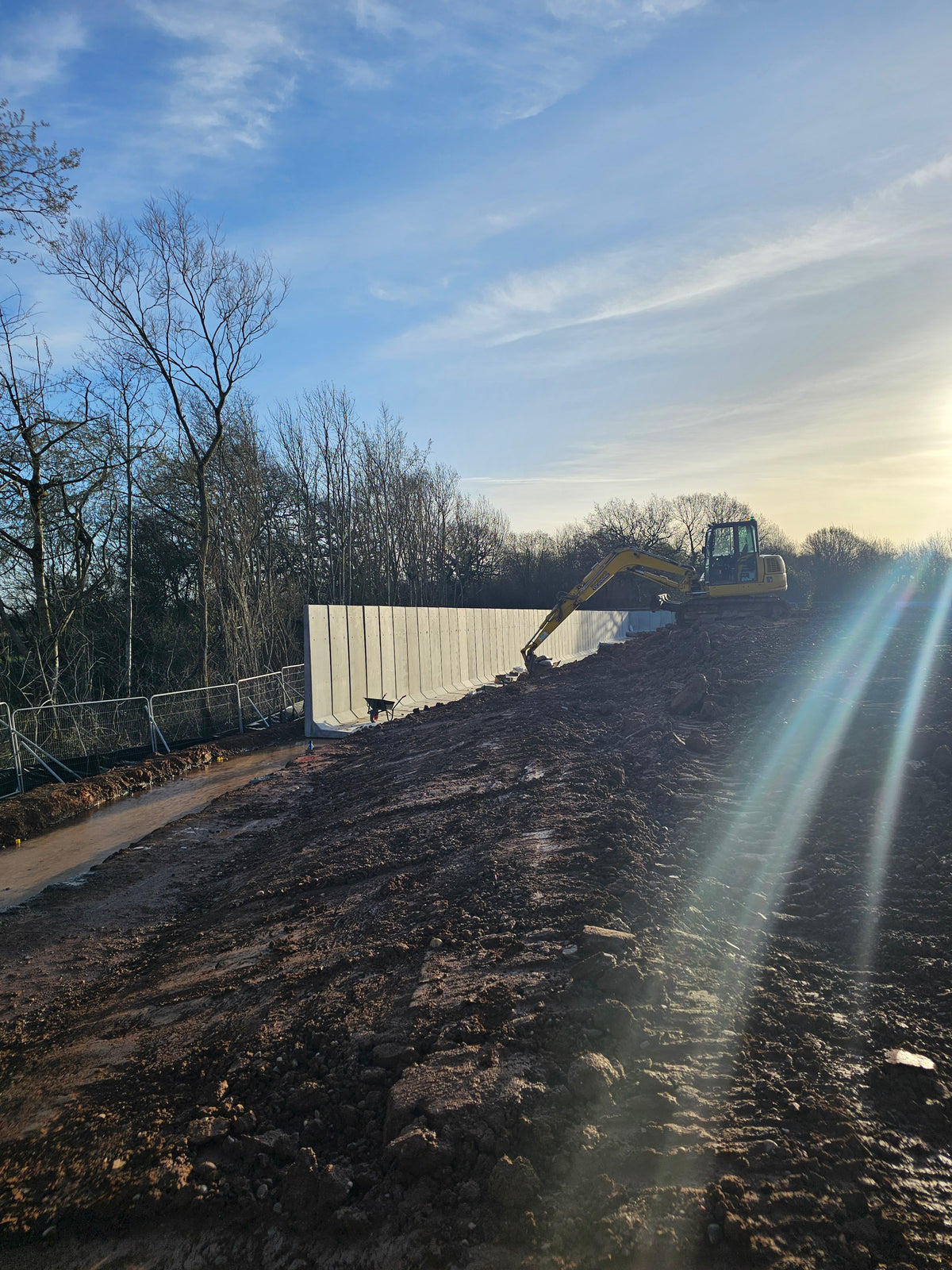

Bolt Down Walls are Quick and Easy to Install and Perform Immediately

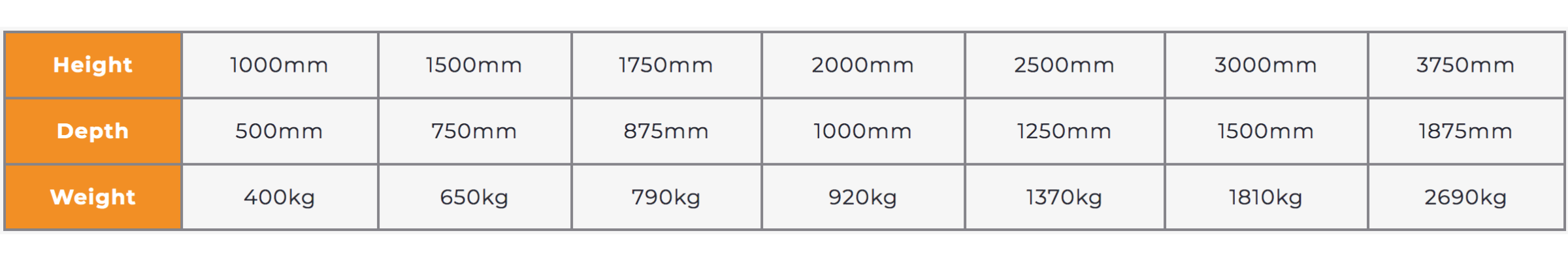

Wall Sizes, Dimensions & Product Range

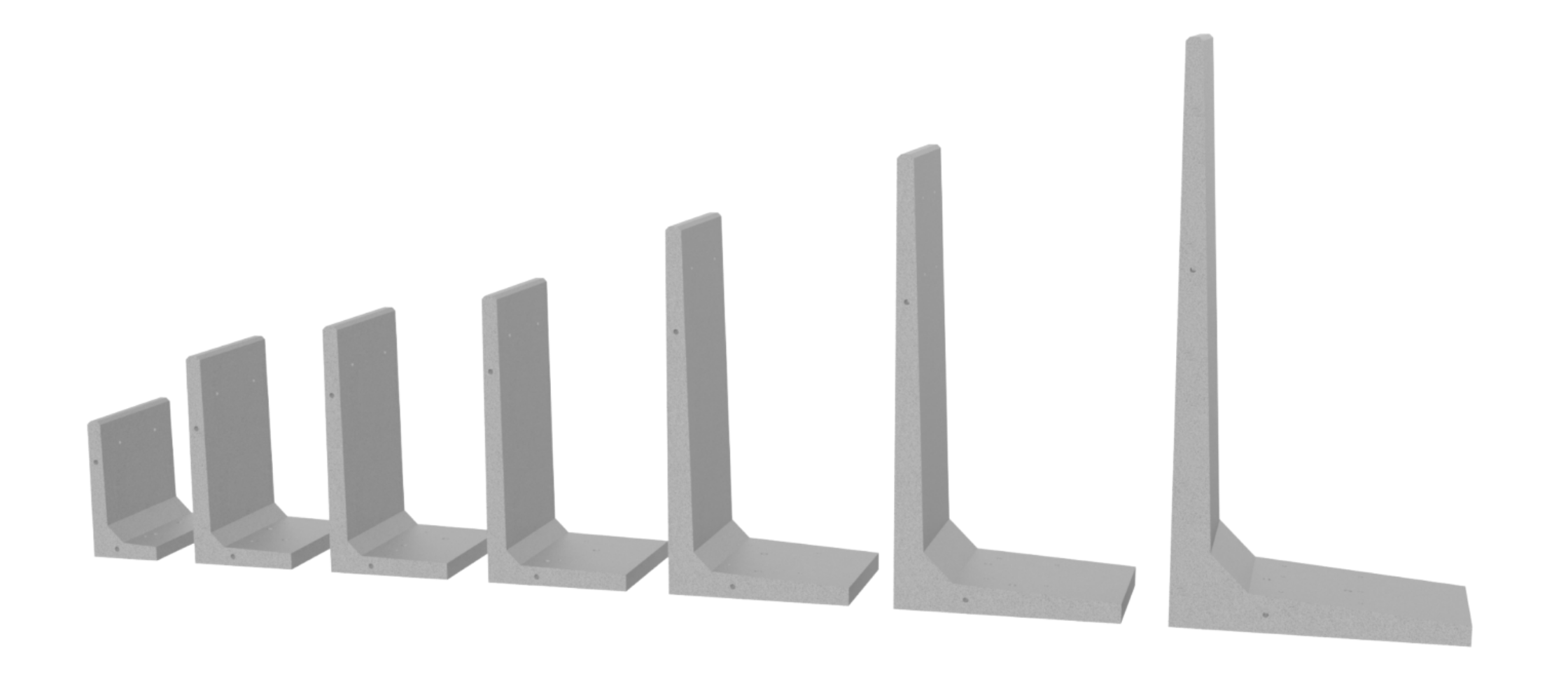

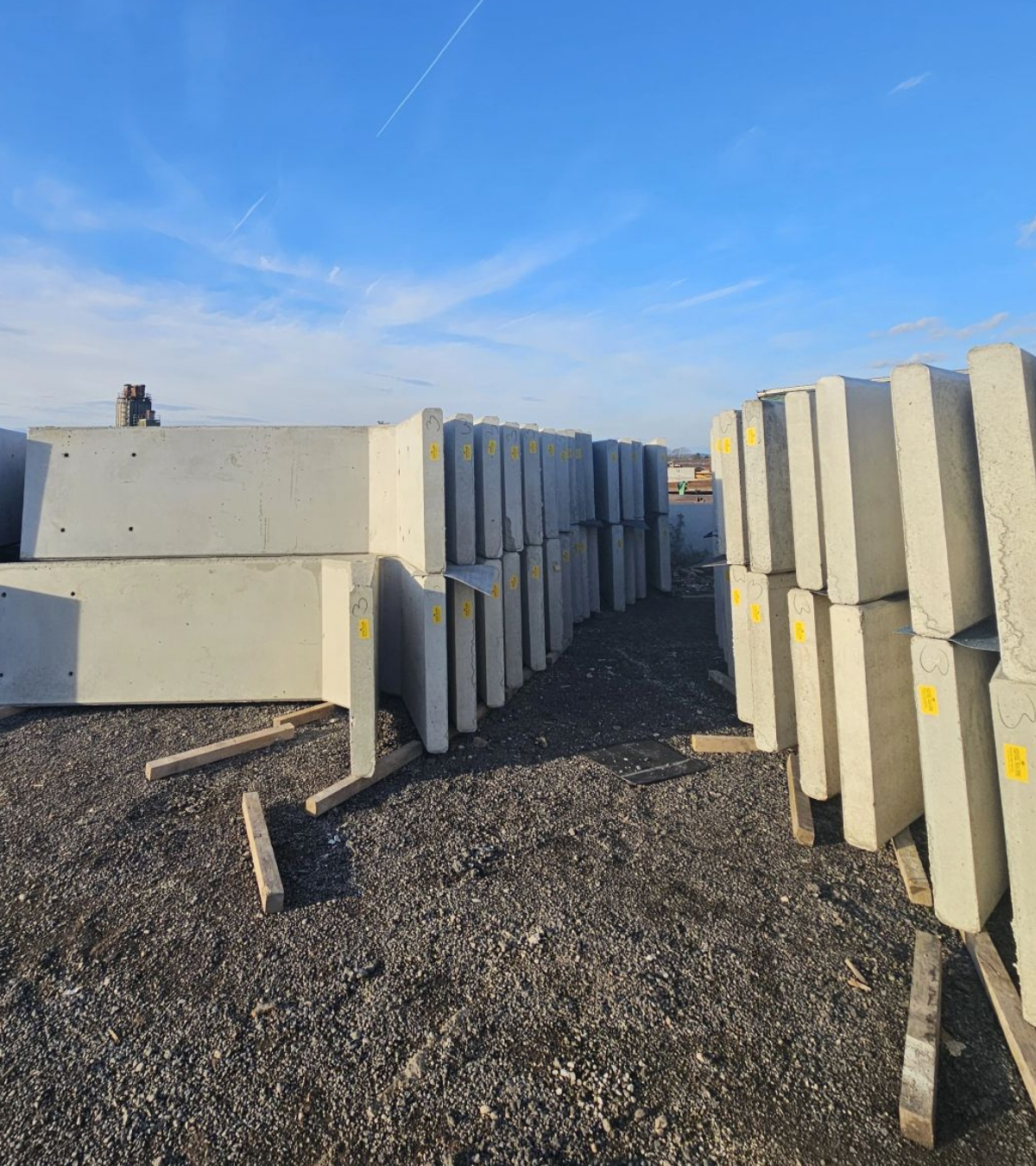

Our precast L-shape bolt-down retaining walls are available in 7 standard heights, from 1.0m to 3.75m.
All heights below are available in 1000mm wide sections.
Key Benefits
Precast retaining walls are reinforced concrete units manufactured off-site and delivered ready for installation & immediate use.
- Enhanced Structural Stability - Securely fixed to a concrete base
- Designed for Heavy Loads - Engineered to withstand significant pressure from stored materials or retained earth
- Permanent and Secure Installation - Intended for long-term installations where strength and security are critical.
- Durability and Longevity - Bolt down retaining walls offer excellent resistance to weathering, moisture, and impact
- Efficient Installation - Precast elements are manufactured off-site and delivered ready for installation
- Versatile Applications - Their robust design makes them adaptable to many different site requirements
Precast concrete is a strong and durable material that can withstand heavy soil loads and take whatever nature throws at it. Our retaining walls can last for decades with little or no maintenance.
Common Applications
Bolt down L-shape retaining walls are designed for applications where greater structural stability and long-term performance are required.
By securely fixing the wall units to a prepared concrete foundation, these systems provide a strong and dependable solution for projects involving heavy loads, retained ground, or high-impact environments.
Common applications include:
- Soil and Earth Retention - For landscaping and ground level changes
- Permanent Storage Bays - In quarries, recycling centres, and industrial facilities
- Bulk Material Handling Areas - Where additional strength is required
- Heavy-duty Agricultural and Industrial Storage
- Locations with Vehicle Impact Risk - Such as loading areas
Product Specifications
Heights: 1.0m to 3.75m
Available in seven standard heights, supplied in 1.0m wide sections. Choose the wall height that matches your storage needs without overbuilding.
Concrete strength: C50 mix
Made in C50 concrete for strength and durability, ensuring walls perform reliably in demanding storage environments.
Design life: Up to 100 years
Engineered for long-term use, bolt down retaining walls have a design life up to 100-years under normal storage conditions.
Fire resistance: 30 minutes
Strengthens resilience for commercial and industrial sites with dependable fire protection.
Finish: Smooth
Both sides have a mould-finished surface, ensuring a clean and tidy appearance regardless of which side is visible.
Surcharge capacity: Up to 25 kN/m²
Designed to retain bulk materials and withstand vehicle loads. Whether storing aggregates, silage, or heavy industrial materials, bolt-down units are engineered to handle the demand.
Product Data Sheets
Browse and download our official data product sheets
Bolt Down L-Shape Retaining Walls (1.0m Height) - Product Data Sheets
Download PDFBolt Down L-Shape Retaining Walls (1.5m Height) - Product Data Sheets
Download PDFBolt Down L-Shape Retaining Walls (1.75m Height) - Product Data Sheets
Download PDFBolt Down L-Shape Retaining Walls (2.0m Height) - Product Data Sheets
Download PDFBolt Down L-Shape Retaining Walls (2.5m Height) - Product Data Sheets
Download PDFBolt Down L-Shape Retaining Walls (3.0m Height) - Product Data Sheets
Download PDFBolt Down L-Shape Retaining Walls (3.75m Height) - Product Data Sheets
Download PDFHow are Bolt Down Retaining Walls installed?

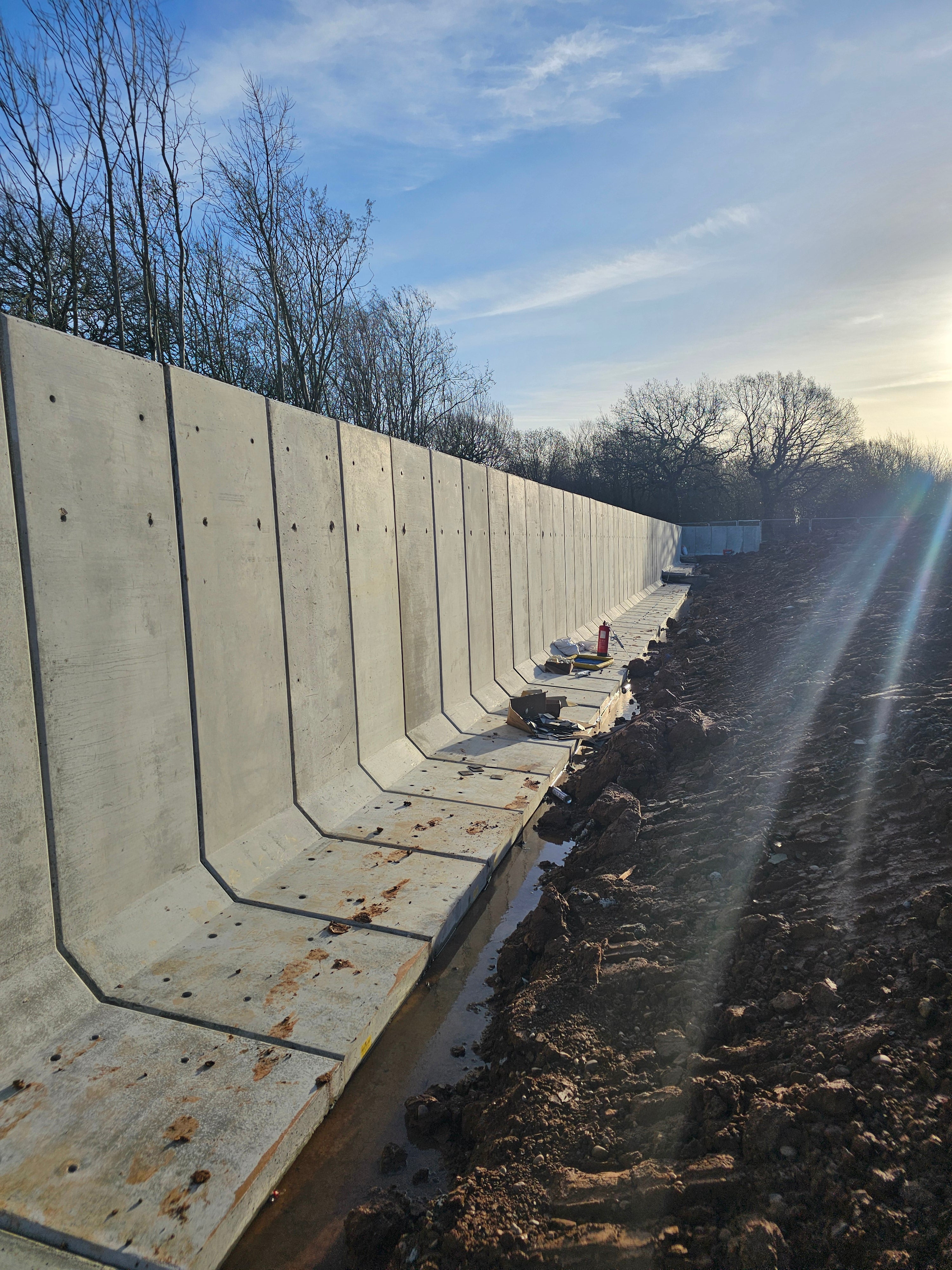

The L-shaped concrete units are securely bolted onto a reinforced concrete strip footing or foundation. This method removes the need for steel RSJs, columns, or additional structural framing, helping to reduce overall project costs while maintaining structural integrity and long-term performance.
One of the key advantages of our L-shaped retaining walls is the speed of installation. A standard three-person installation team can typically install up to 50 linear metres per day, and often more, depending on site conditions.
We provide complete fixing kits and use a rapid-set resin anchor system, allowing the walls to be secured quickly and efficiently. This approach significantly reduces construction time compared to traditional in-situ concrete retaining wall systems.
Each precast retaining wall will require a reinforced concrete foundation which should be determined by a qualified engineer.
The lifting of each precast element during installation of the wall structure must be supervised by a qualified person to ensure safety at all times.
Why Choose Unbrako?
We provide technical guidance to ensure the correct retaining wall system is selected for your project.
We consider:
- Retained material type
- Ground bearing capacity
- Retained height
- Surcharge loads
- Drainage requirements
- Site access and installation constraints
Our team works with contractors and engineers to deliver practical, buildable retaining wall solutions that meet structural and operational demands.
Whether you require freestanding walls or securely anchored bolt down systems, Unbrako Precast Concrete LTD provides dependable retaining solutions built for long-term performance.
How To Order:
Our bolt down retaining walling can be ordered directly from our sales team. We offer a site visit and design service for every project if required and are also available to assist with technical advice.
For more information, please fill in the enquiries form using the button below, or call 01949 860 985 and a member of our sales team will be happy to help.
