Prestressed Concrete Walling Panels

Unbrako manufacture concrete panels ranging in width of 0.5 – 1.8m and thicknesses of 100, 150, 180 & 280mm.

Concrete walling panels are connected by a tongue and groove joint and are typically installed horizontally between steel columns.

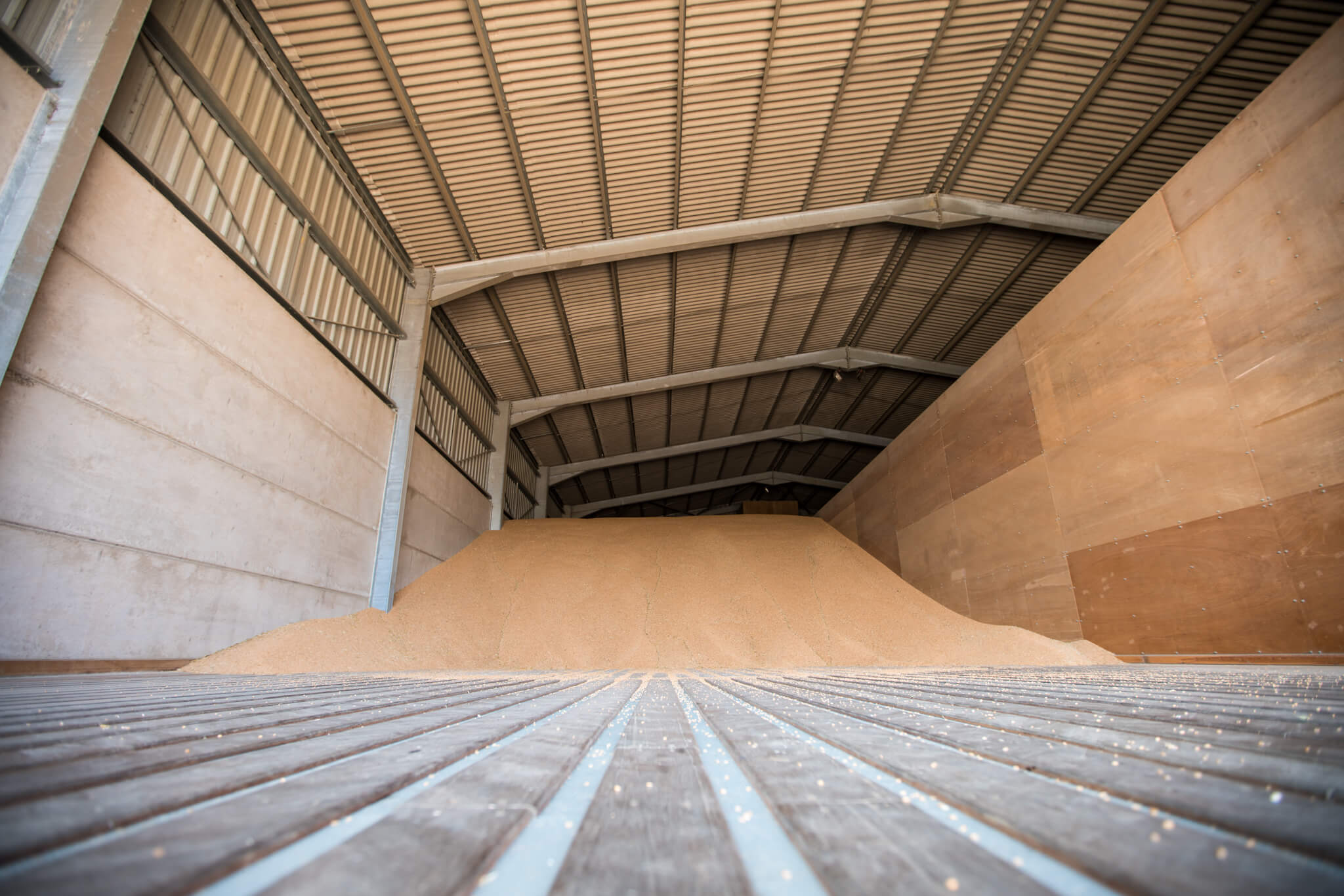

The 100mm panels are typically used for light-duty walling such as livestock buildings and workshops whereas the thicker units are used for earth retention, silage pits, grain stores and waste transfer stations among other applications.

Concrete panels offer a low cost, high strength walling solution that is very quick to install and also flexible for future alterations, should that be required.

Flexible Design

Cast to suit column centres with thicknesses from 100mm to 280mm

Fast Installation

Large panels drop between steel columns or fix to the outer face, speeding up wall construction

Strength & Durability

Prestressed strands reduce cracking and allow panels to handle surcharges up to 20 kN/m²

Common Applications

Prestressed wall panels are widely used across industrial, commercial, and infrastructure projects where strong, durable wall systems are required.

Common applications include:

Industrial Buildings and Warehouses - Prestressed wall panels are frequently used in large industrial buildings, warehouses, and logistics facilities
Commercial Developments - Retail units, office buildings, and mixed-use commercial developments often incorporate prestressed wall panels as part of their structural or external wall systems
Retaining and Boundary Walls (King Post Systems) - Prestressed panels can be used to form retaining or boundary walls where additional structural performance is required
Infrastructure and Utility Projects - Infrastructure developments such as energy facilities, transport infrastructure, and utility sites often require durable concrete wall systems

View Sectors

Key Benefits

Prestressed retaining walls provide a high-strength solution for projects that require enhanced structural performance and durability.

High structural capacity – Designed to resist heavy vertical and lateral loads
Reduced cracking and deflection – Enhanced durability and service life
Slim, efficient sections – Optimised use of materials without compromising strength
Factory-controlled quality – Consistent finishes and dimensional accuracy
Rapid installation – Precast solutions that reduce on-site time and labour
Design flexibility – Custom sizes, finishes, and connection details to suit your project
Cost efficient - Delivering value through optimised design and reduced whole-life costs.

Prestressing introduces controlled compressive forces into the concrete, significantly enhancing crack resistance and structural efficiency. The result is a wall system that performs better under load while using material more efficiently.

Make an Enquiry

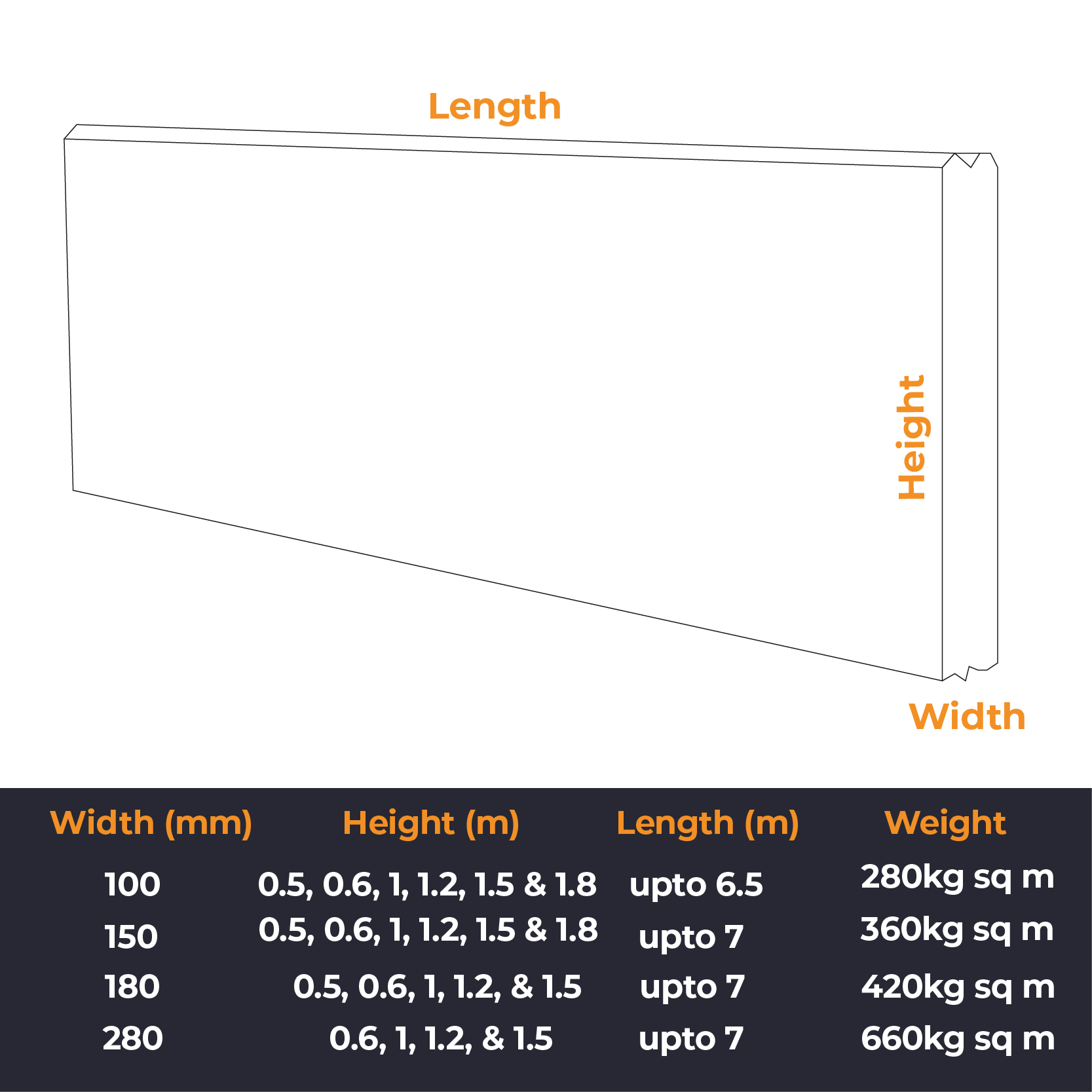

Product Specifications

Panel heights: 0.5m to 1.8m

Standard heights of 0.5m, 0.6m, 1.0m, 1.2m, 1.5m and 1.8m to suit common building layouts. Bespoke heights can be manufactured to meet specific project requirements, offering flexibility in wall design.

Panel thicknesses: 100mm to 280mm

Available in 100mm, 150mm, 180mm, and 280mm thicknesses. Thinner panels are ideal for internal divisions and lighter storage, while thicker sections provide increased strength for heavy-duty or external retaining walls.

Surcharge capacity: Up to 20 kN/m²

Designed to resist surcharges of up to 20 kN/m², depending on panel thickness and wall configuration - ideal for agricultural and industrial storage applications.

Concrete strength: C60

Manufactured using high-performance C60 concrete, delivering excellent durability and resistance to impact and abrasion.

Design life: 100 years

Up to 100 years, providing long-term reliability for permanent agricultural and industrial structures.

Fire resistance: 120 minutes

Fire resistance of up to 120 minutes can be achieved, depending on panel thickness, offering added confidence in demanding environments.

Data Product Sheets

Browse and download our official data product sheets

Prestressed Walls Gallery

How are Prestressed Concrete Panels installed?

We have an in-house installation team, able to provide you with a professional and competitive installation service if required.

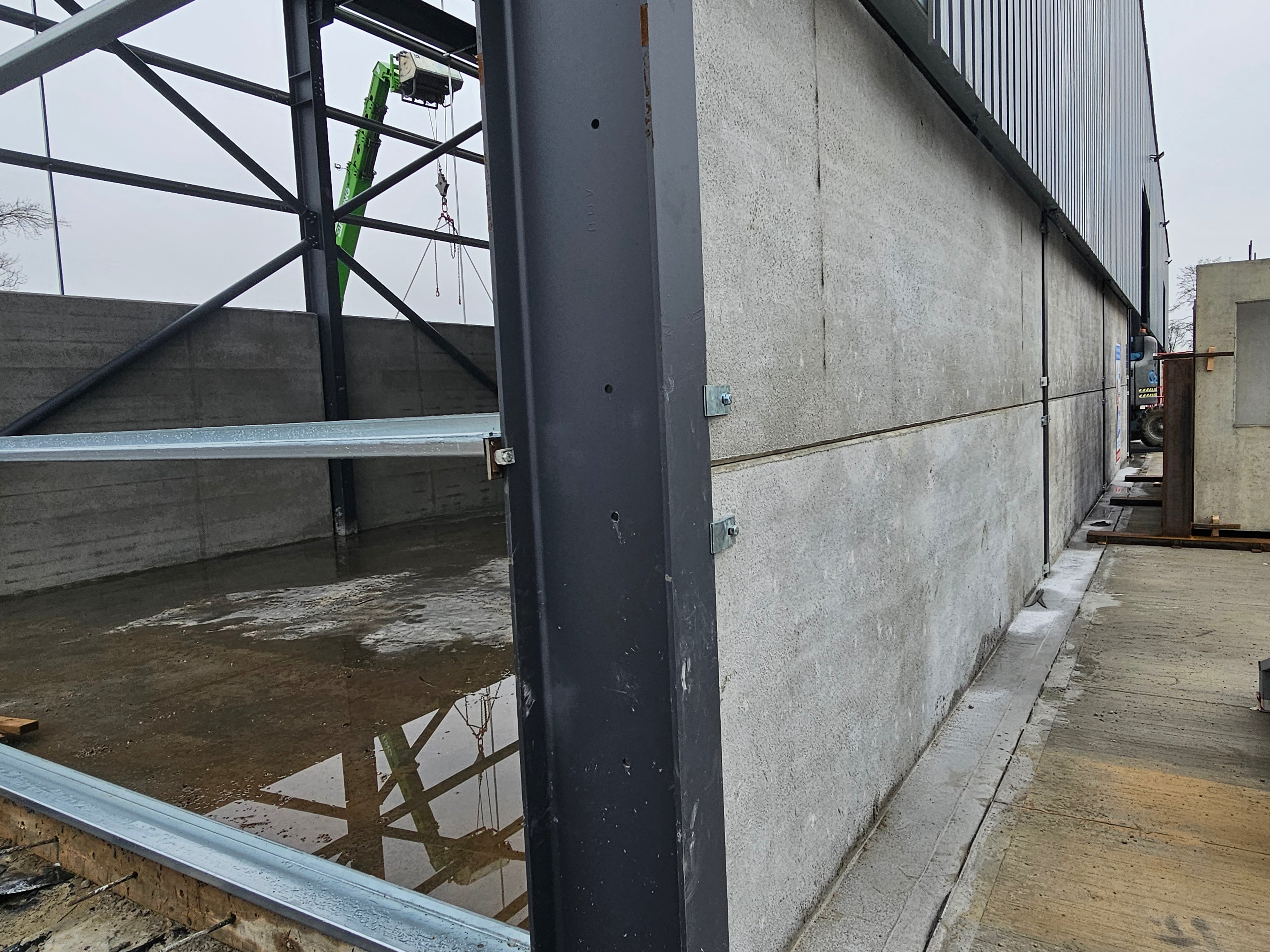

Prestressed concrete panels are installed using a simple process – either by placing the panels between steel support columns, or clipping them to the face of the steel support columns using the metal fixing plates provided. Therefore no foundations are needed.

Unbrako’s panels are supplied with polyurethane sealant inclusive, allowing you to seal the joints preventing the ingress of rain and damp.

A set of lifting shackles is also provided inclusive.

Contact Sales Team

Why Choose Unbrako?

We combine engineering expertise with precision manufacturing to deliver high-quality precast concrete solutions tailored to each project’s requirements.

With a strong focus on structural performance, durability, and programme efficiency, Unbrako supports clients from initial design through to production and delivery.

Our factory-controlled processes ensure consistent quality, while our commitment to reliability, safety, and technical support gives contractors and developers confidence that their project will be delivered on time and built to last.

Make an Enquiry

How To Order:

Our prestressed wall panels can be ordered directly from our sales team. We offer a site visit and design service for every project if required and are also available to assist with technical advice.

For more information, please fill in the enquiries form using the button below, or call 01949 860 985 and a member of our sales team will be happy to help. Alternatively, email Luke@unbrakoprecast.com for direct technical support on your project.
