Wingwalls
Engineered wingwalls provide a durable, integrated solution for retaining surrounding ground and protecting bridge and box culvert openings.
Culvert Wingwalls

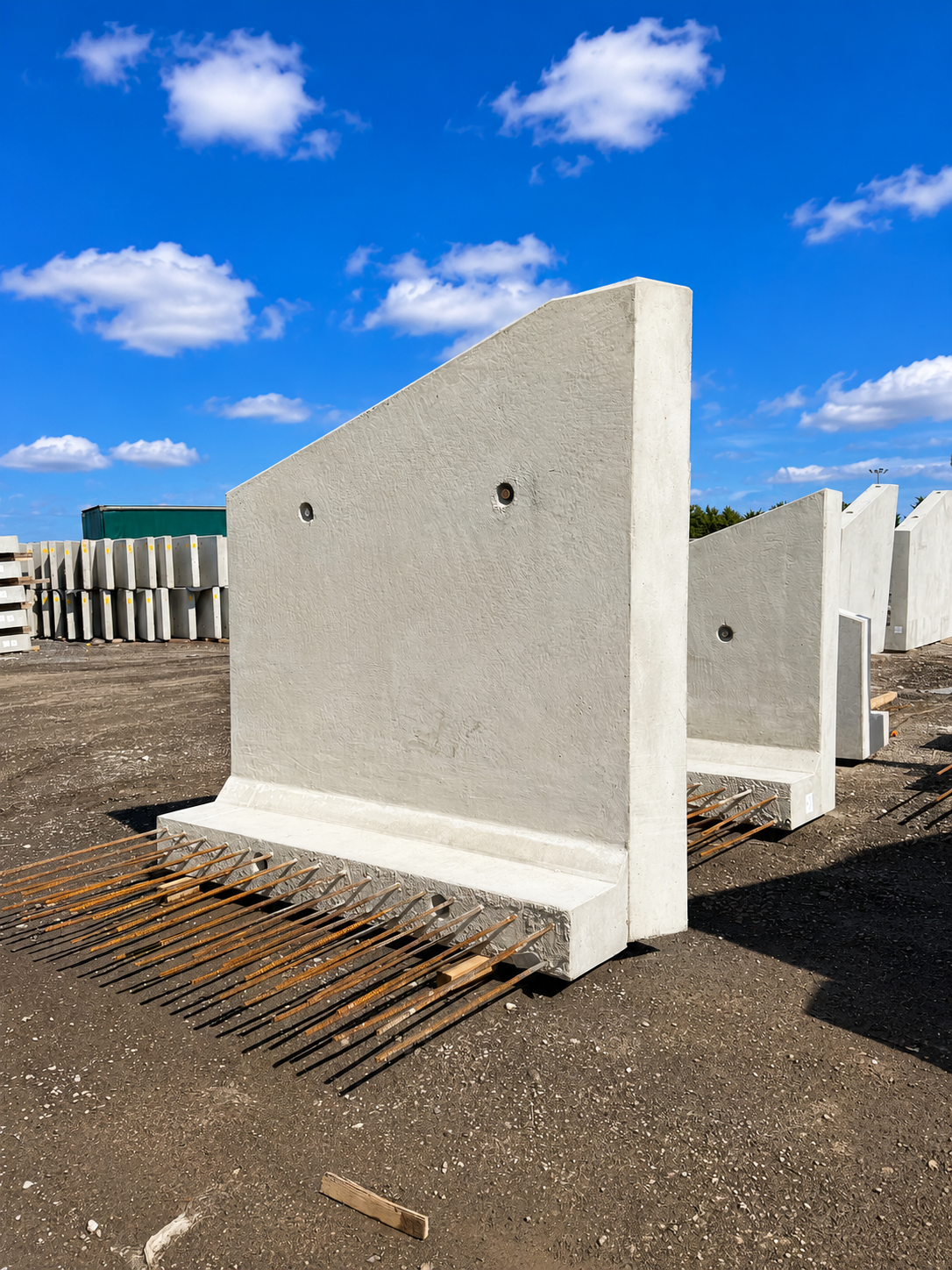

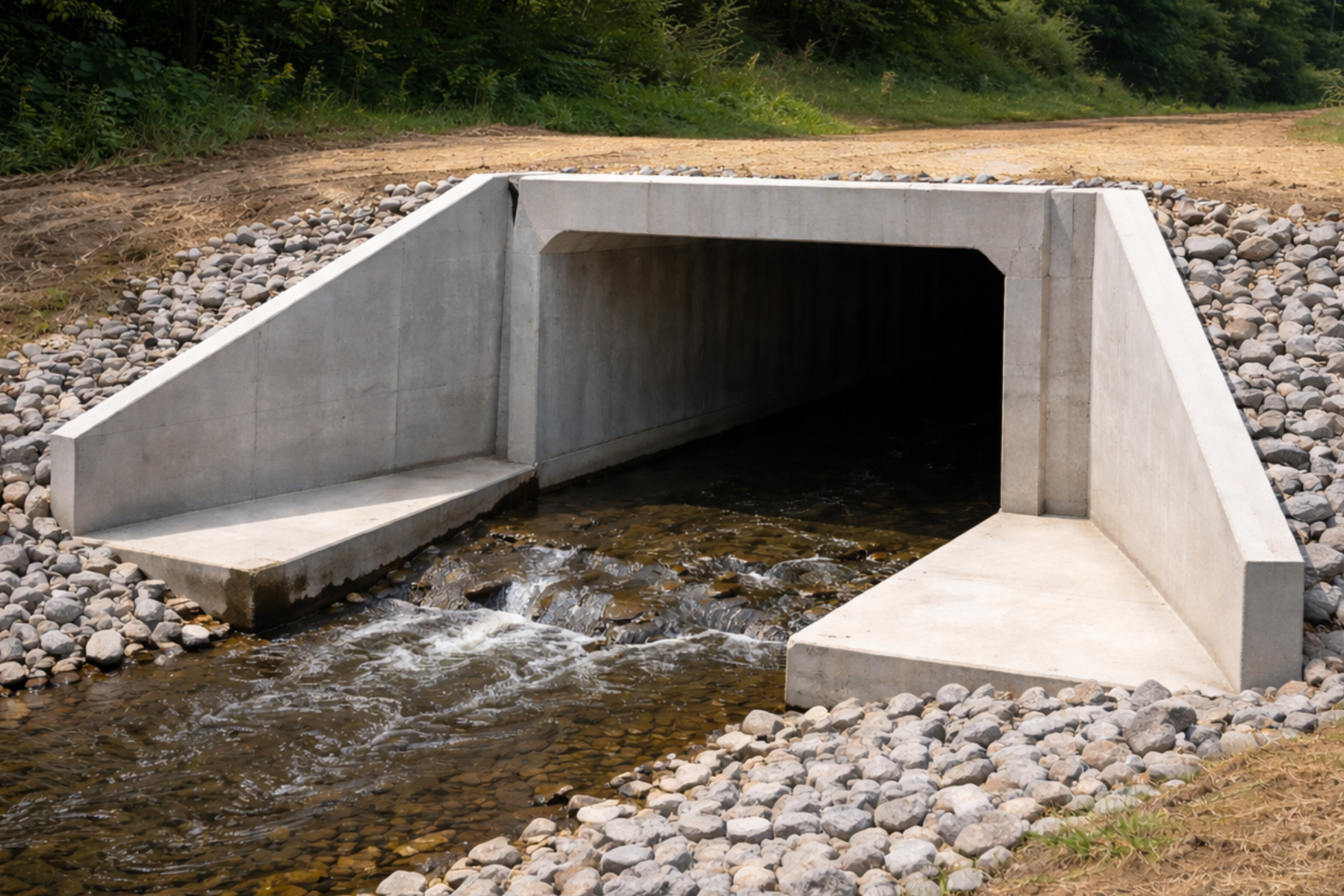

Wingwalls are an optional addition to our precast concrete box culvert systems, designed to enhance both the structural performance and hydraulic efficiency of the installation. Typically formed as angled vertical concrete slabs extending from the culvert opening, they provide a smooth transition between the culvert and the surrounding embankment.
By guiding water flow into and out of the culvert, wingwalls help to improve channel alignment and reduce turbulence at the inlet and outlet. This not only supports hydraulic performance but also plays a key role in minimising erosion and protecting the surrounding ground.
Wingwalls can be supplied with integrated aprons or footings where required, depending on site conditions and design requirements, offering additional stability and resistance to scour.
Together, these features provide a durable, integrated solution for retaining surrounding ground and protecting culvert and bridge openings, while ensuring efficient water flow and long-term performance.
Made To Order
Manufactured to your required width, height and loading
Fully Customisable
Make your product bespoke to meet your project specifications
Fast Installation
Nationwide delivery, culvert systems arrive ready for quick installation
A Durable, Integrated Solution for Retaining Surrounding Ground
Key Benefits
Precast culvert solutions offer a highly efficient and reliable method for managing water flow and supporting infrastructure.
- Improved Water Flow Management - Wingwalls help guide water smoothly into and out of culverts, reducing turbulence and improving the overall efficiency of the drainage system
- Erosion Protection - Wingwalls help prevent erosion of the surrounding soil and embankments
- Structural Support for Culvert Entrances - Wingwalls provide additional structural stability at culvert entry and exit points

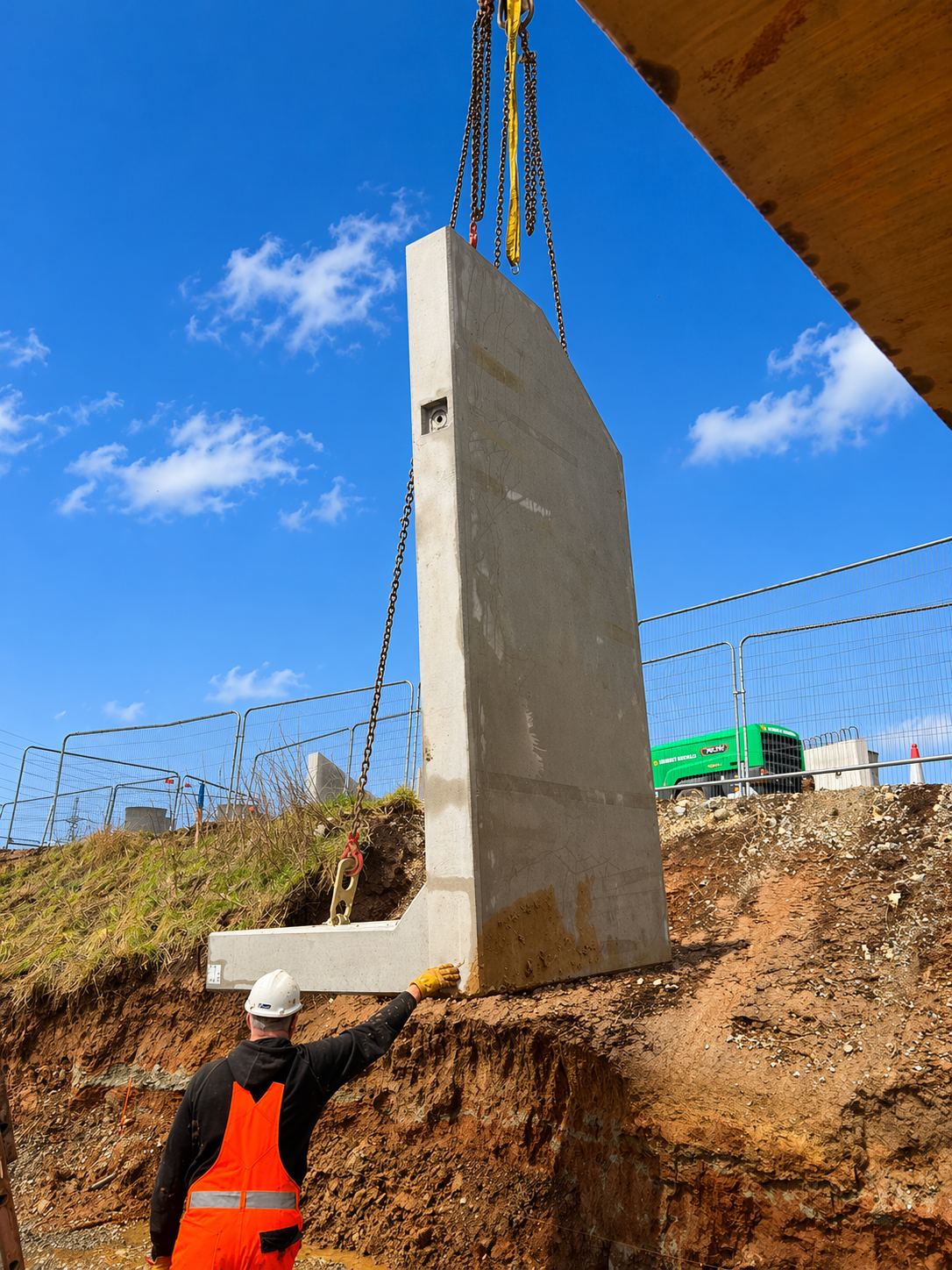

- Faster Installation with Precast Construction - Precast wingwalls are manufactured off-site and delivered ready for installation
- Consistent Quality and Precision - Manufacturing in a controlled factory environment ensures each wingwall is produced to precise dimensions and high quality standards
- Durable and Low Maintenance - Constructed from reinforced precast concrete, wingwalls are designed to withstand weather exposure, water flow, and environmental conditions
- Bespoke Sizing - Available in a wide range of bespoke sizes
Culvert wingwalls play an important role in supporting and protecting culvert systems by guiding water flow and stabilising the surrounding ground.
Common Applications
Common applications include:
- Road and Highway Crossings - Used to carry water beneath roads and highways while supporting heavy vehicular loads and maintaining long-term structural stability
- Attenuation & SuDS Applications - Integrates into Sustainable Drainage Systems (SuDS) to provide attenuation and controlled surface water discharge
- Railway and Transport Infrastructure - Installed beneath railway lines and transport corridors to safely convey water while meeting strict loading and safety requirements
- Agricultural Drainage - Helps manage field drainage and water movement across farmland, preventing water-logging and protecting access routes
- Stormwater and Flood Management - Provides efficient conveyance of stormwater and surface runoff, helping reduce flood risk and improve site drainage
- Industrial and Commercial Developments - Supports drainage infrastructure in large-scale developments, ensuring reliable water management around buildings, yards, and access roads
- Pedestrian and Service Underpasses - Can be configured to create safe passageways beneath roads or embankments
Product Specifications
Concrete: High-strength structural concrete (typically C50 or as required)
Selected to provide long-term durability and performance in line with project conditions and exposure classes.
Finish: Smooth finish or as specified
Designed to enhance performance and minimise maintenance requirements.
Design life: Up to 120 years
Engineered for long-term use in accordance with relevant design standards and site-specific conditions.

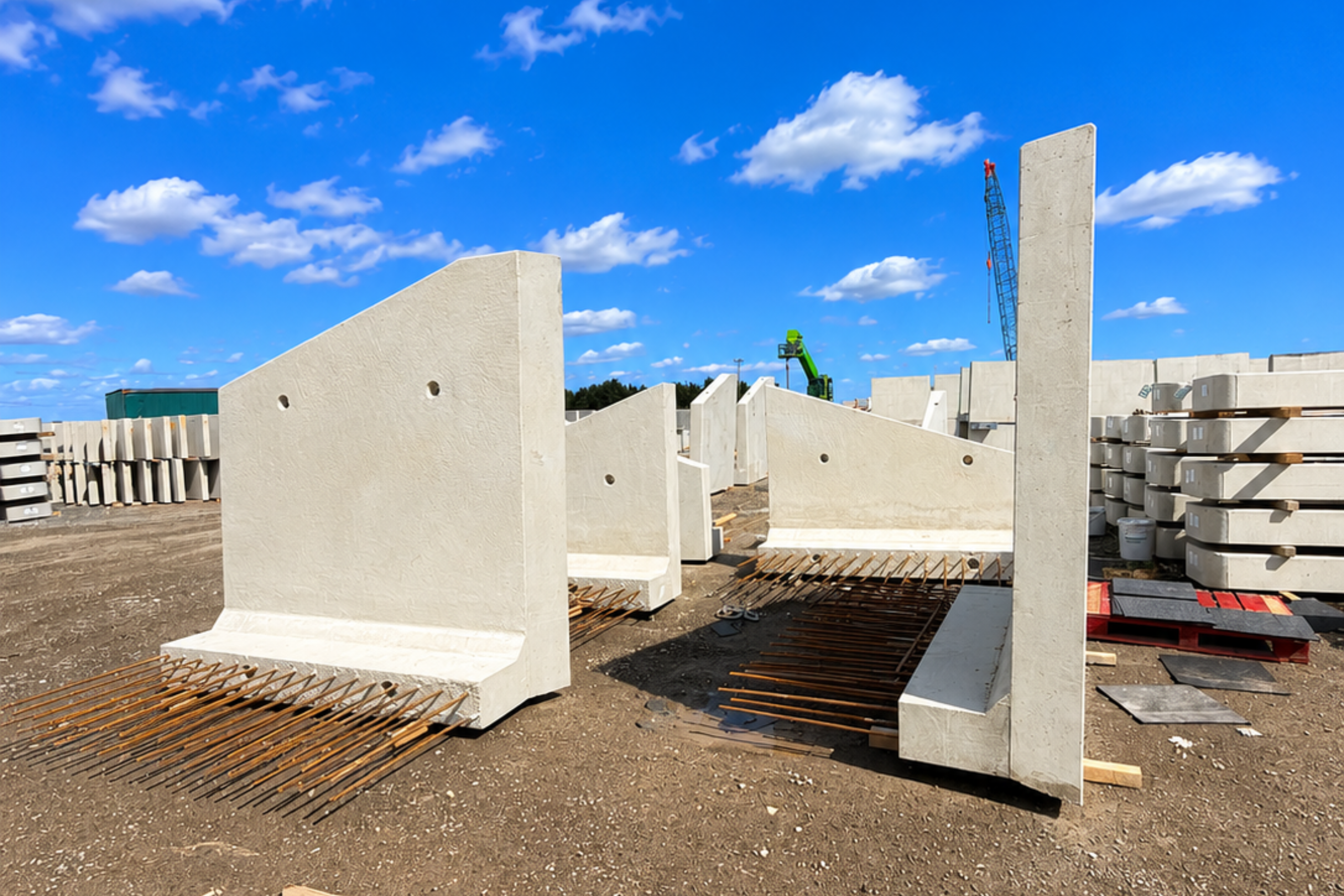

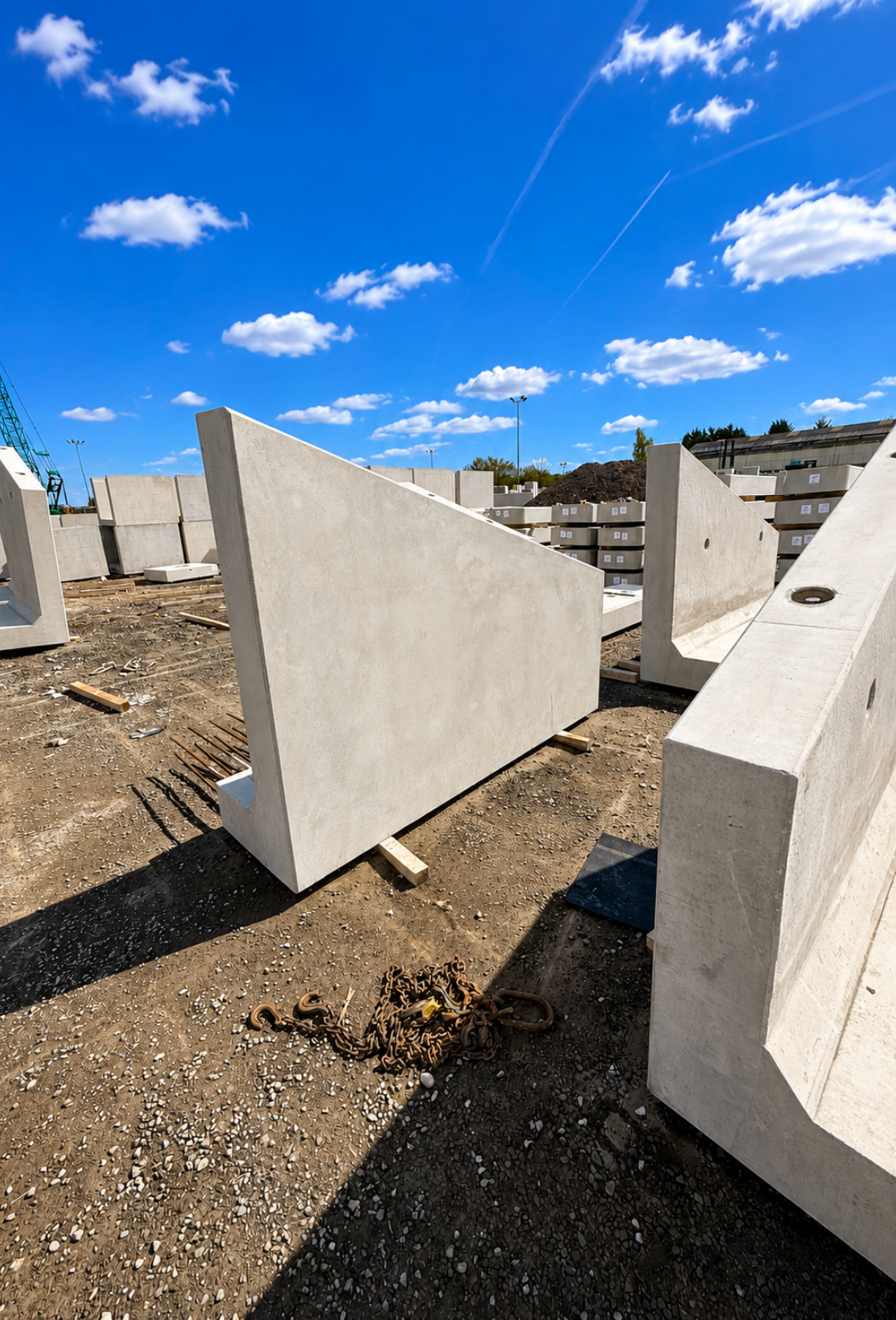

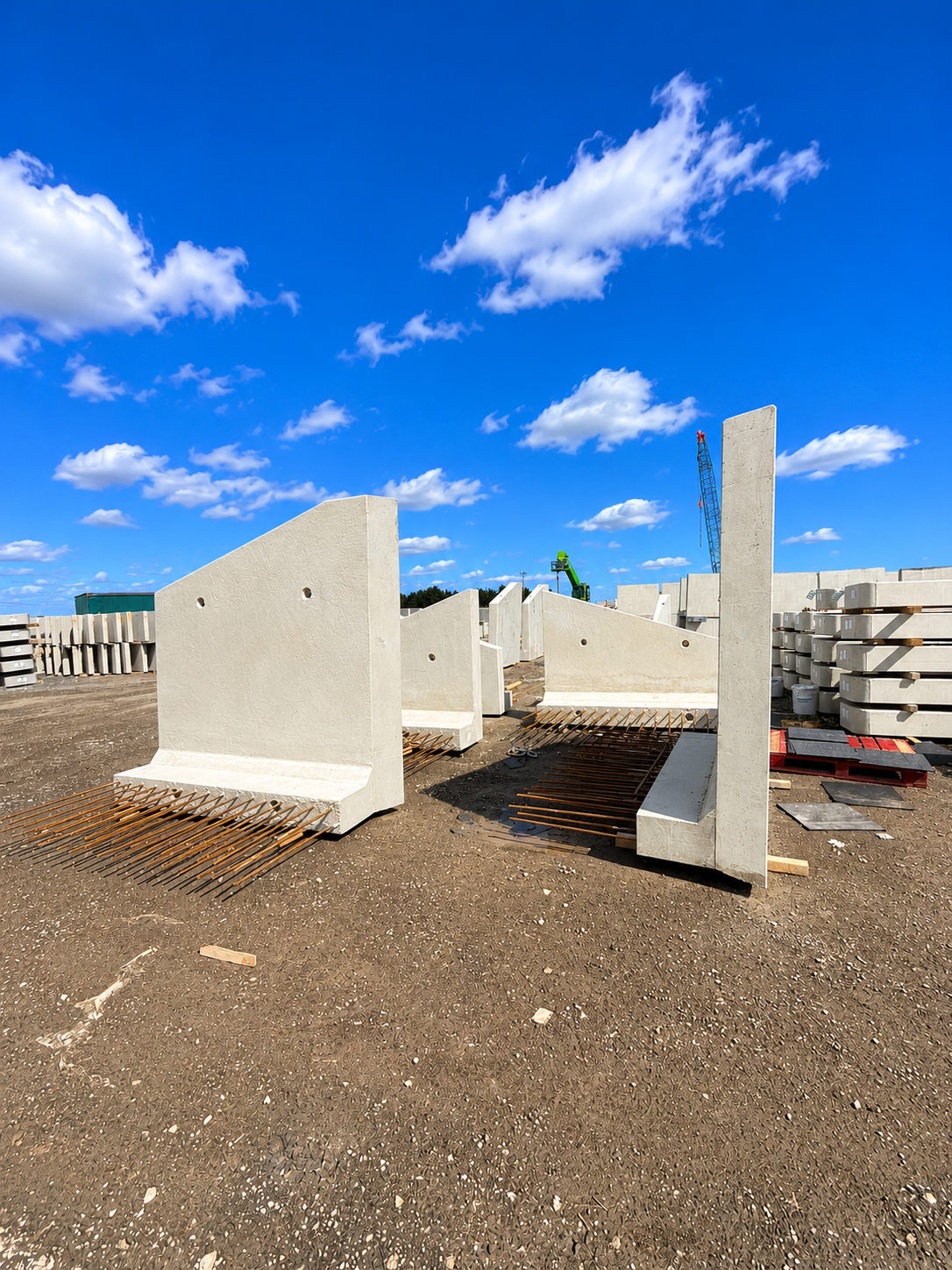

Manufactured in a Controlled Factory Environment
Why Choose Unbrako?
We understand that no two drainage or infrastructure projects are identical. That’s why we offer fully bespoke culvert solutions tailored to:
- Hydraulic design requirements
- Ground conditions
- Load classifications
- Environmental considerations
- Site access constraints
- Programme timelines
Our team works closely with engineers, contractors, and developers to deliver practical, buildable, and compliant solutions.
From small drainage schemes to major infrastructure developments, Unbrako Precast Concrete LTD provides durable, engineered culvert solutions built for long-term performance.
How To Order:
Our culvert wingwalls can be ordered directly from our sales team. We offer a site visit and design service for every project if required and are also available to assist with technical advice.
For more information, please fill in the enquiries form using the button below, or call 01949 860 985 and a member of our sales team will be happy to help. Alternatively, email Daniel@unbrakoprecast.com for direct technical support on your project.
